Hardware
호스트 크기: 320mm in length, 198mm in width, and 150mm in height.
Packaging size: 560mm360mm230mm (luggage box: weight 6kg)

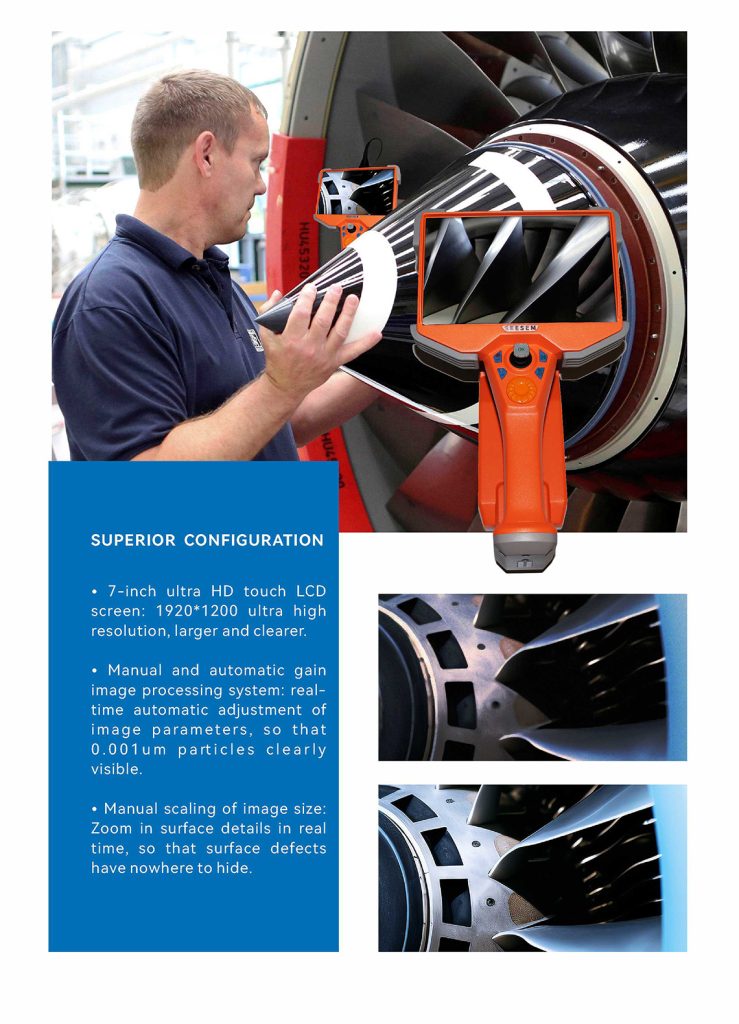

화면 크기: 7.0 신장 (touchscreen) monitor with protective cover, supports replaceable screen.
Screen resolution: 1920*1200
Screen material: IPS full-view angle touch screen
Software

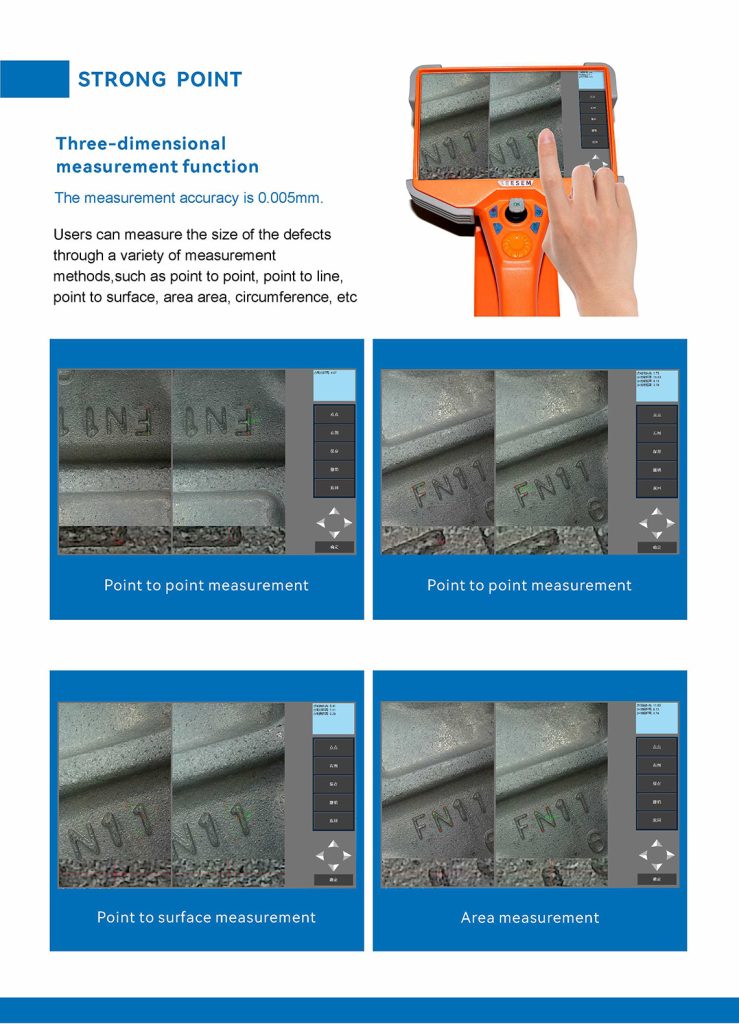

Operating system: Linux/Ubuntu Chinese operating system, user interface menu driven by buttons or touchscreen, upgradable to a 3D measurement system.
Image zoom: supports real-time online 4x zooming, up to 8x magnification during image playback.
Recording function: equipped with photo and video recording function, can capture images while recording.
Watermark: supports time and logo watermarks, and logo watermarks can be replaced.
Simultaneous display: different screens can display the same content, the host screen and external display screen can display at the same time, more convenient for multiple people to view.
프로브 온도 표시: real-time display of probe temperature, with over-temperature warning alarm.
Image-assisted measurement: crosshair reference line.
Menu language: Simplified Chinese, Traditional Chinese, 영어, 일본어, 한국인, French, 독일 사람, 포르투갈 인, 스페인의, 러시아인, and more than ten other languages.
Screen backlight brightness: 4-level adjustable.
파일 형식: Images are stored in JPEG/BMP format, videos in MP4/AVI format.
Video playback: video playback can be fast-forwarded or rewound.
이미지 회전: real-time images can be rotated by 0°/90°/180°/270°.

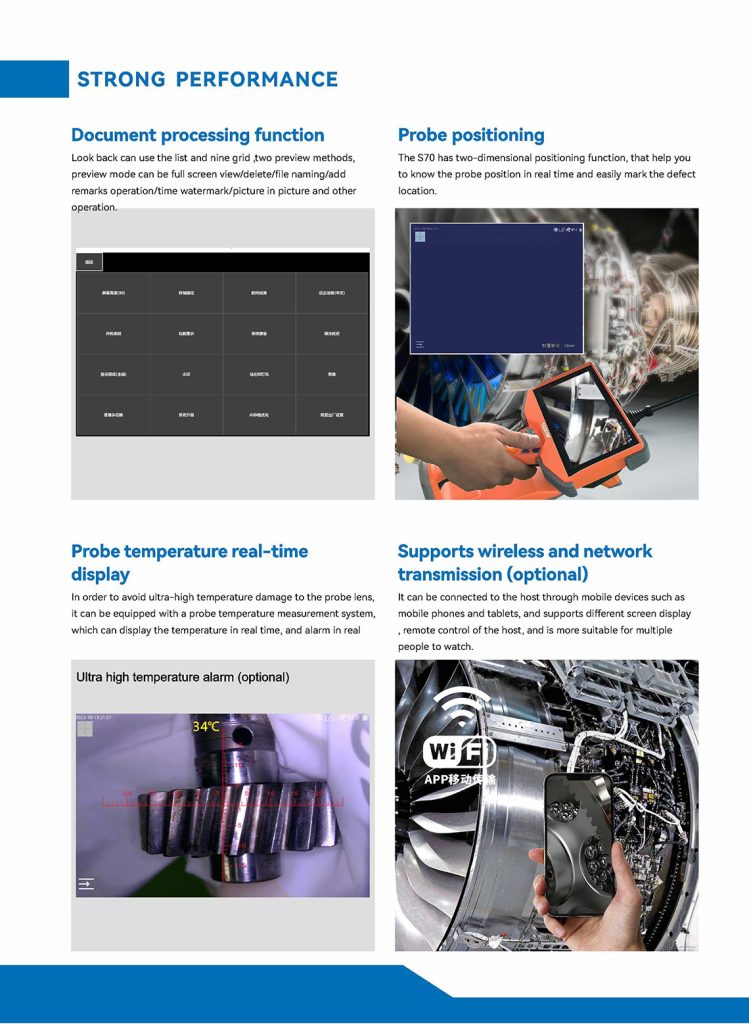

File preview: file preview can be displayed in list or grid view, with options to view in full-screen mode, delete files, copy files, and rename files.
이미지 미리보기: doodling and marking on pictures with text, arrows, circles, and squares, with added time and logo watermarks.
Image color: color, black and white, negative, brilliant, 등. with an image processing system that has gain control.
출력 포트: HDMI, 3.5mm audio jack, USB3.0
Voice playback: two speakers.
Recording function: imported anti-howling microphone head.
Storage medium: built-in EMMC 64G storage, can be externally connected to a USB flash drive.
Camera pixel: 160,000, 520,000, 1 백만, 2 million pixels compatible.
Camera depth of field: 2-20mm, 3-50mm, 5-100mm, 10-150mm, 20mm-infinite, others can be customized.
Camera field of view angle: 80°, 100°, 120°, 140°.
Light source: 전면 LED 조명, rear fiber optic lighting can be selected.
LED light illumination: continuous adjustment and automatic LED light brightness mode.
관로

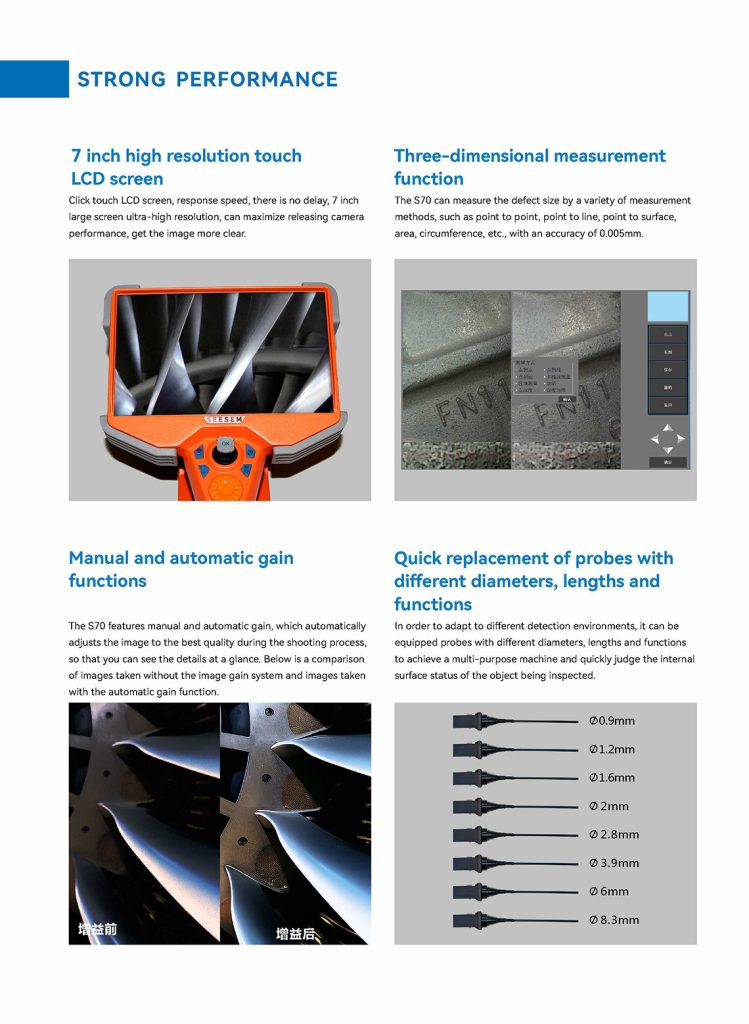

Pipeline diameter: 1.6mm, 2.0mm, 2.8mm, 3.9mm, 6.0mm, 8.3mm.
Pipeline length: 1-12 meters can be selected, longer lengths need to be customized.
프로브 직경: 1.6mm (160,000 픽셀, 520,000 픽셀), 2.0mm (160,000 픽셀, 520,000 픽셀), 2.8mm (1 백만 픽셀), 3.9mm (1 백만 픽셀), 6.0mm (100/200 백만 픽셀), 8.3 (100/200 백만 픽셀)
Probe observation direction: Direct view, side view, direct side view interchangeable, direct side view integrated.
프로브 재료: 티타늄 합금.
Probe unidirectional bending angle: 180° ± 10°.
Probe bending control: Electric rocker 360° freely lockable fine-tuning, step-by-step, fast and slow speed adjustment, automatic reset, fast and slow bending speed switchable, fast and slow bending speed adjustable, with reset and positioning function.
파이프라인 재료: 4-layer wear-resistant tungsten alloy wire braided tube.
Pipeline can be replaced: The host and pipeline can be detachable and replaceable with Ø 1.6mm ~ 8.3mm pipe diameter, interchangeable at will.
Host material: Stainless steel + aluminum alloy + ABS + PC + silicone rubber.
Camera temperature range: -25 ℃ to 90℃.
Host Part
Host working temperature: -25℃ ~ 60℃.
보관온도: -40℃ ~ 60℃.
상대 습도: 15% ~ 90% without condensation.
Camera real-time transmission distance: ≤10m.
Host net weight: <3Kg (배터리 포함).
Whole machine drop rating: 1 meter drop.
Working voltage: DC 20V.
힘: >30W.
Battery: 3 충전식 21700 lithium batteries, single battery capacity 5000mAh.
Total battery capacity: 3.6V 15000mAh.
Charging method: Online charging lithium battery, charging power adapter AC 220V, 50-60Hz.
Battery life: ≥6시간.
Waterproof rating: Host IP55, pipeline IP68, dustproof, 방수, oil-resistant, and corrosion-resistant.
Inner packaging: environmentally friendly high hardness EVA.
Instrument packaging box: high-end pull rod box.
Packaging weight: ≤ 13 kg.
Optional Functions
Optional functions: WIFI real-time wireless transmission function, explosion-proof function, ultra-high precision three-dimensional measurement function, defect recognition function, and more functions support customization.
서비스
Product Warranty: Equipment service life > 5 years, whole machine warranty for 1 year, lifetime maintenance
Standard Shipping Contents: Main unit, 관로, 3 x 5000mAh 21700 lithium batteries (explosion-proof certified), power adapter set, 32G USB drive, shoulder strap, user manual, 보증 카드, qualification certificate, lens cleaning kit. Optional accessories include a Micro HDMI connection cable and a portable pull rod protective box.
